RELAY INTERFACE PRODUCTS
USB RELAY - WIFI RELAY
RS-232 RELAY - RS-485 RELAY
WIRELESS RELAY CONTROL
2, 8, 12, and 16 Channel
Expand up to 128 Channel


AR-2 and AR-2S Relay Interface

AR-2MF USB Relay

AR-8MF, AR-12MF USB Relay

WiFi Network Relay Interface

Ethernet Relay Interface

Relay Control Systems

AR-8RH Relay Interface

AR-8X Relay Interface

AR-16 Relay Interface



Relay Cards

AR-2 Bell Relay

AR-16 Load Programmer

PAC-A Relay Interface Package

PAC-D Relay Interface Package

USB Relay

WiFi Relay





AR-8MF USB RELAY
The AR-8MF Multi-Function Relay Interface provides software control of 8 relays/outputs or monitoring of 8 inputs (or combinations of inputs and outputs). An optional dual I/O mode will allow input of information along with relay control. The input mode will provide input interfacing for on/off equipment status, keypads or other types of digital signals. Inputs may be used to monitor contact status or to monitor AC or DC voltages +/- 3.3 volts to +/-18 volts (other voltage ranges available). The optically isolated inputs are bidirectional and may be used with a positive common, a negative common or AC signals. Multi-Function capability allows connection of a variety of 8 bit I/O devices. The AR-8MFWIFI may be used for wireless relay control. A large variety of relay cards may be connected. Includes free Event Notification Software and Event Data Logging Software. The AR-8MF may be expanded to control up to 144 relays, monitor 144 inputs (or combinations of relays and inputs) using EXM-8, EXM-16 or EXM-32 Relay I/O Expansion Modules. LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library. Includes Relay Control Software for Windows (Windows XP/Vista/Windows 7/8.1, Windows 10 and Windows 11, Windows Server) and software which allows the AR-8MF to be controlled over a network (LAN, Wi-Fi, Internet, etc.). Compatible with Android devices. The AR-8MF is available in USB, WiFi, Ethernet, RS-232 and RS-485 versions.

AR-8MF USB Relay Interface

USB WiFi Ethernet RS-232 RS-485

AR-8MF Ordering Information

Relay Cards for the AR-8MF

AR-8MF Technical Reference

AR-8MF SPECIFICATIONS
SIZE
 2.75" by 3.1"

WEIGHT
 .5 ounce

INTERFACE
 USB

CHANNELS
 8 Channel
 Expandable up to 144 channels
Each channel may be independently set to control a relay or act as an input

OUTPUT CONFIGURATION
 Opto isolated photo transistor output
 (100mW max per channel)
Connects direct to most solid state relays, reed relays or LEDs

INPUT CONFIGURATION
 Opto isolated:
Default input voltage range:
 3.3V to 18V AC or DC
(+ common or - common) LED input

I/O PORT
 One 8 channel I/O port
(for direct connection to a relay card, relay driver card, RCT-8 terminal block or other device)

RELAY RESPONSE SPEED
 (less than 1 millisecond)

OPTIONAL EXPANSION PORTS
 (3) Expansion Ports, add up to an additional 136 relay outputs, 136 status inputs or combinations using EX-8M, EXM-8, EXM-16 or EXM-32 expansion modules
8 Channel Dual I/O Port

OPERATING SYSTEMS
 Compatible with:
Windows XP (service pack 3),
 Vista, Windows Server, Windows 7, Windows 8.1
 and Windows 10
LabVIEW compatible

OPERATING TEMPERATURE
 -40 degrees C to 85 degrees C

POWER REQUIREMENTS
 Powered from USB connection
(5V, 50mA)



AR-2MF USB RELAY

The AR-2MF Multi-Function USB Relay is a stand alone relay interface for connection to USB which provides software control of (2) relays which are included and mounted on the AR-2 circuit assembly. The relays are energized or de-energized by using the RS-232 control signals DTR and RTS or alternate relay control setting (set by shunts on the circuit board). When the alternate relay control is selected, DTR and RTS no longer control the relays and the relays are controlled using relay control commands. The AR-2MF can be used as a direct replacement for the AR-2 when connected to USB with no software changes needed (Windows 2000/XP/Vista/Windows 7/8.1, Windows 10 and Windows 11, Windows Server). The AR-2MF is for use with USB only using a standard USB cable (or OTG cable for Android devices with a micro USB port). The EN-C Instrument Case may be used to house the AR-2MF if an enclosure is required. The relays are SPDT rated at 16 amp 250 volts AC. A terminal block is provided for relay contact connections (12 to 30 awg wire size using rising cage clamp design). Power is supplied to the AR-2MF through the USB connection. USB connection is via a USB type B receptacle (CC-USBB1 or CC-USBB6 connector cable required). Software and source code examples are provided that allow the AR-2MF relays to be controlled from your desktop, your program or controlled over a network (LAN, Wi-Fi, Internet, etc.). The AR-2MF is Android device compatible (free apps on Google Play and our web site). The AR-2MF may be ordered with an optional expansion port that will allow the AR-2MF to be expanded up to a total of 10 relays (or 8 inputs or combinations) using the EX-8M Expansion Card. Relays may be time scheduled using the SW-A Load Programmer software for 7 day time control of relays. LabVIEW compatible, includes LabVIEW VI and graphic software example. Control software examples in Basic, Visual Basic and C and others are provided with the order on CD. Dimensions... 2.375" by 3.1".
AR-2MF RELAY CONTACT SPECIFICATIONS:
Contacts: SPDT
Contact Rating: 16 amp (1/2 HP 120VAC, 1 HP 240VAC) (tungsten TV-5 120VAC 25K)
Maximum Voltage: 250 VAC or 30 VDC

AR-2MF Power: USB supplied 5 volts DC (160ma with both relays energized)
Relay coil connections are optically isolated
Rated for continuous operation
AR-2 RELAY INTERFACE...The AR-2 relay interface is a stand alone relay interface for connection to RS-232 which provides software control of (2) relays which are included and mounted on the AR-2 circuit assembly. The relays are energized or de-energized by using the RS-232 control signals DTR and RTS. The AR-2 relay interface is used when only 1 or 2 relays are required (such as to control a door lock). The AR-2 is only for use with RS-232 (or USB using the CO-USB cable) and is not expandable. Available in single relay version, see AR-1 Relay Interface. The EN-C Instrument Case may be used to house the AR-2 if an enclosure is required. The relays are SPDT rated at 16 amp 250 volts AC. A terminal block is provided for power supply and relay contact connections. Requires the PS-GP-1 power supply and serial cable (sold separately). RS-232 connection is via a DE-9 (to order cable, add the suffix /AR-2 to the any of the serial cables shown in the section describing connector cables). Software is also provided that allow the AR-2 relays to be controlled from your desktop, a program or controlled over a network (LAN, Internet, etc.). Relays may be time scheduled using the SW-A Load Programmer software for 7 day time control of relays. LabVIEW compatible, includes LabVIEW VI and graphic software example. Control software examples in Basic, Visual Basic and C are provided with the order. COM 1 thru COM 256 supported. Dimensions... 2.375" by 3".
AR-2 RELAY CONTACT SPECIFICATIONS:
Contacts: SPDT
Contact Rating: 16 amp (1/2 HP 120VAC, 1 HP 240VAC) (tungsten TV-5 120VAC 25K)
Maximum Voltage: 250 VAC or 30 VDC

AR-2 Power Supply: 10 to 14 volts DC 100ma
RS-232 connections are optically isolated
Rated for continuous operation using less than 2 ma of current from the RS-232 port

AR-2S RELAY INTERFACE...The AR-2S relay interface is similar to the AR-2, except that two digital inputs are provided in addition to the two relays. The inputs may be used to input the on/off status of push buttons, contacts, alarms or to determine the status of equipment, etc. (inputs are optically isolated). Input status is indicated via the RS-232 status lines DSR and DCD (CTS may be used as a supervisory signal to monitor for the AR-2S connection and power). A terminal block is provided for connection to the inputs, power source and relay contacts. The EN-C Instrument Case may be used to house the AR-2S if an enclosure is required. Requires the PS-GP-1 power supply and serial cable (sold separately) 10 to 14 volts DC 100ma. RS-232 connection is via a DE-9 (to order cable, add the suffix /AR-2S to the any of the serial cables shown in the section describing connector cables). Relays are rated at 12 amp, 240 VAC with SPDT contacts. COM 1 thru COM 256 supported. The AR-2S may be connected to USB using the CO-USB cable. LabVIEW compatible, includes LabVIEW VI and graphic software example. Includes reference and software. Software is also provided that allows the AR-2S inputs and/or relays to be controlled or monitored over a network (LAN, Internet, etc.). Includes free Event Notification Software and Event Data Logging Software. Dimensions are 3" by 3".

AR-2S Photo

RELAY CONTROL SYSTEMS (8 to 136 Relays)
SPECIFICATIONS:

Designed for continuous 24 hour industrial operation.
Fast relay response speed

Expandable to control up to 136 relays or monitor up to 136 digital inputs (or combinations)
LabVIEW compatible, includes LabVIEW VI and graphic software example.
Includes source code examples in Visual Basic (.Net and VB6), C#, C++, Python and others.

Select the Front End Module to connect to USB, WiFi, Ethernet, RS-232 or RS-422/RS-485


AR-8X RELAY INTERFACE

The AR-8X relay interface provide software control of 8 reed relays which are provided on the card. Control of the relays are accomplished by transmitting a single byte code (0 thru 15 binary) from the RS-232 port to energize or de-energize the relay (see AR-16 software example). The AR-8X may be expanded to provide up to 120 relay outputs (in 16 or 32 channel increments) using EX-16 or EX-32 relay expansion cards. The AR-8X also has an input expansion port which allows digital or analog inputs to be added using the ST-16, ST-32, AD-16, or AD-32 expansion cards. These cards will allow input of information along with relay control. The EX-16 or EX-32 Expansion Cards may be used to add additional relay outputs. The AD-16 or AD-32 Analog Expansion Cards will provide input interfacing for input of temperature, energy usage, pressures, air flow, touch tone signals, etc. The ST-16 or ST-32 Digital Expansion Cards will provide input interfacing for on/off equipment status, keypads and other types of digital signals. Up to (16) AR-8X Relay Interfaces may be connected to a single twisted pair line with the RS-485 option. The PS-4 Port Selector may be used to control remote AR-8X interface cards up to 4,000 feet from the PC. Terminal blocks are provided for connection to the relay contacts, power input and serial I/O. Available with optional LED indicator lamps for each relay and/or a TransZorb/self-resetting fuse. Includes Relay Control Software for Windows (Windows XP/Vista/Windows 7/8.1, Windows 10 and Windows 11, Windows Server) and software which allows the AR-8X to be controlled over a network (LAN, Wi-Fi, Internet, etc.). Compatible with Android devices. Requires 9 to 14 volt DC power supply, 300 ma.
AR-8X SPECIFICATIONS:

Designed for continuous 24 hour industrial operation.
Fast relay response speed (less than 1 millisecond at 19,200 baud)
Baud rate is selectable (50 to 19,200 baud). Default protocol is 8 data bits, 1 or 2 stop bits and no parity. Jumpers may be used to select other standard protocols.
Expandable to control up to 120 relays and to monitor up to 128 digital inputs or 32 analog inputs.
LabVIEW compatible, includes LabVIEW VI and graphic software example.
Includes source code examples in Visual Basic (.Net and VB6), C# and others.

Connects to USB, RS-232 or optional RS-422/RS-485
8 Reed Relays provided on the card
Contacts: SPST
Contact Rating: 10 VA, (½ amp maximum)
Maximum Voltage: 200 volts DC or AC
Dimensions: 5" by 7"


AR-8RH RELAY INTERFACE

The AR-8RH Relay Interface provides software control of 8 power relays which are provided on the circuit board. Control of the relays are accomplished by transmitting a single byte code (0 thru 255 binary) from the RS-232 port to energize or de-energize the relay (see AR-16 software example). The AR-8RH may be expanded to provide up to 128 relay outputs (in 16 or 32 channel increments using EX-16 or EX-32 relay expansion cards). The EX-16 or EX-32 Expansion Cards are used to add additional relay outputs. Up to (32) AR-8RH Relay Interfaces may be connected to a single twisted pair RS-485 line up to 4,000 feet. The PS-4 Port Selector may be used to connect up to (4) AR-8RH cards allowing the control of up to 512 relays. Terminal blocks are provided for connection to the relay contacts, power input and serial I/O. Available with optional LED indicator lamps for each relay and/or a TransZorb/self-resetting fuse. Includes Relay Control Software for Windows (Windows 2000/XP/Vista/Windows 7/8.1, Windows 10 and Windows 11, Windows Server) and network software which allows the AR-8RH relays to be controlled over a network (LAN, Wi-Fi, Internet, etc.). Compatible with Android devices. Requires 9 to 14 volt DC power supply, 300 ma.
AR-8RH SPECIFICATIONS:

Designed for continuous 24 hour industrial operation.
Fast relay response speed (less than 1 millisecond at 19,200 baud)
Baud rate is selectable (50 to 19,200 baud). Default protocol is 8 data bits, 1 or 2 stop bits and no parity. Jumpers may be used to select other standard protocols.
Expandable to control up to 128 relays.
LabVIEW compatible, includes LabVIEW VI and graphic software example.
Includes source code examples in Visual Basic (.Net and VB6), C# and others.

Connects to RS-485 or optional RS-232/RS-422/RS-485/USB
8 Power Relays are provided on the circuit board
Contacts: SPDT
Contact Rating: 12 amp, 1/2 horsepower at 240 volts AC or 1/3 horsepower at 120 volts AC
Maximum Voltage: 250 volts AC or 30 volts DC
Dimensions: 5" by 7"


AR-12MF USB RELAY
The AR-12MF Multi-Function Relay Interface provides software control of 12 relays/outputs or monitoring of 12 inputs (or combinations of inputs and outputs). An optional dual I/O mode will allow input of information along with relay control. The input mode will provide input interfacing for on/off equipment status, keypads or other types of digital signals. Inputs may be used to monitor contact status or to monitor AC or DC voltages +/- 3.3 volts to +/- 18 volts (other voltage ranges available). The optically isolated inputs are bidirectional and may be used with a positive common, a negative common or AC signals. Multi-Function capability allows connection of a variety of 8 bit I/O devices. The AR-12MF may be expanded to control up to 148 relays, monitor 148 inputs (or combinations of relays and inputs) using EXM-8, EXM-16 or EXM-32 Relay I/O Expansion Modules. A large variety of relay cards may be connected. Includes free Event Notification Software and Event Data Logging Software. LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library. Includes Desktop Relay Control Software for Windows, source code examples, software interface and USB driver. (Windows XP/Vista/Windows 7/8.1, Windows 10 and Windows 11, Windows Server) and software which allows the AR-8MF to be controlled over a network (LAN, Wi-Fi, Internet, etc.).

AR-12MF USB Relay Interface

AR-12MF Ordering Information


Relay Cards for the AR-12MF

AR-12MF Technical Reference

AR-12MF SPECIFICATIONS
SIZE
 2.75" by 4"

WEIGHT
 .5 ounce

INTERFACE
 USB

CHANNELS
 12 Channel
 Expandable up to 148 channels
Each channel may be independently set to control a relay or act as an input

OUTPUT CONFIGURATION
 Opto isolated photo transistor output
 (100mW max per channel)
Connects direct to most solid state relays, reed relays or LEDs

INPUT CONFIGURATION
 Opto isolated:
Default input voltage range:
 3.3V to 18V AC or DC
(+ common or - common)
LED input

I/O PORTS
 One 8 Channel I/O Port and
One 4 Channel I/O Port
(for direct connection to relay cards, relay driver cards, RCT-8 terminal blocks or other devices)

RELAY RESPONSE SPEED
 (less than 1 millisecond)

OPTIONAL EXPANSION PORTS
 (3) Expansion Ports, add up to 136 relay outputs, 136 status inputs or combinations using EX-8M, EXM-8, EXM-16 or EXM-32 expansion modules
12 channel Dual I/O port

OPERATING SYSTEMS
 Compatible with:
Windows XP (service pack 3),
 Vista, Windows Server, Windows 7, Windows 8.1
 and Windows 10
LabVIEW compatible

OPERATING TEMPERATURE
 -40 degrees C to 85 degrees C

POWER REQUIREMENTS
 Powered from USB connection
(5V, 50mA)
(second I/O port may also be used to supply 5VDC from the USB port)

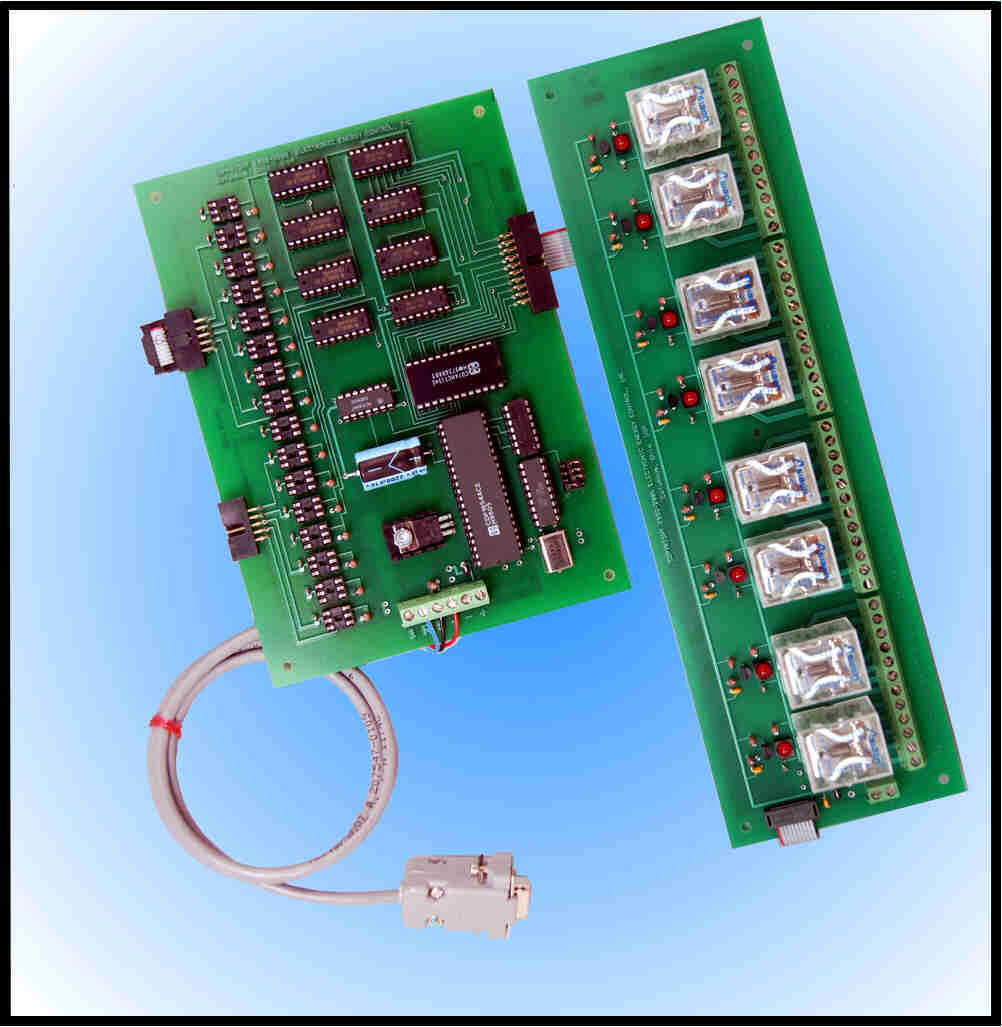

AR-16 RELAY INTERFACE

The AR-16 relay interface provides software control of external relays for a wide variety of control system applications. The AR-16 has many uses in the energy management field and allows a conventional PC or laptop to be used as a load programmer, temperature controller, demand limit controller and in a variety of other applications such as home automation. Control of the relays are accomplished by transmitting a single byte code from the RS-232 port to energize or de-energize the relay. The AR-16 is expandable to provide up to 128 relay outputs (in 16 or 32 channel increments) using EX-16 or EX-32 relay expansion cards. The AR-16 is an output device providing control of relays only. When an application requires input of information as well as relay control, the ADC-16 or STA-16 may be used with the EX-16 Expansion Card for relay control and input functions. The ADC-16 Analog to Digital Converter will provide input interfacing for input of temperature, energy usage, pressures, air flow, etc. The STA-16 Digital Input Card will provide input interfacing for touch tone signals, keypads, and equipment status. Up to (8) AR-16 Relay Interfaces may be connected to a single twisted pair line with the RS-485 option. The PS-4 Port Selector may be used to control remote AR-16 interface cards up to 4,000 feet from the PC. Includes Relay Control Software for Windows (Windows XP/Vista/Windows 7/8.1, Windows 10 and Windows 11, Windows Server) and software which allows the AR-16 to be controlled over a network (LAN, Wi-Fi, Internet, etc.). Compatible with Android devices. Requires 5 to 24 volt DC power supply, 150 ma.



FEATURES

SPECIFICATIONS

Designed for continuous 24 hour industrial operation.

Fast relay response speed (less than 1 millisecond at 19,200 baud)

Baud rate is selectable (50 to 19,200 baud). Default protocol is 8 data bits, 1 or 2 stop bits and no parity. Jumpers may be used to select other standard protocols.

1489 interface IC used for RS-232 inputs.
3486 interface IC used for RS-422/RS-423 inputs (RS-485 also available).

Two 8 channel output ports (TTL level) are provided to control 16 relays (for connection to relay cards, relay driver cards or RCT-8 terminal blocks). Expandable to 128 relay outputs using EX-16 or EX-32 expansion cards. A PS-4 Port Selector may used to control up 512 relays from a single RS-232.

Powered from any power supply with a voltage output of 5 volts DC or higher (up to 24 volts DC). Requires 150 milliamp.

Relay output port connections use a standard 10 contact ribbon cable connecter (.1" centers). A terminal block is provided for power supply and serial input connections.

Dimensions...5" by 7" (rack mountable with other 5" by 7" cards using the CH series card holder racks).



OPTIONS

Options for the AR-16 may be ordered by adding the proper suffix. The following options may be ordered for the AR-16 Relay Interface:

/A422 Option: The AR-16 serial input is configured for the RS-422 interface.
/A485 Option: The AR-16 serial input is configured for the RS-485 interface.

/C Option: Opto isolators are installed on the AR-16, EX-16 or EX-32 to electrically isolate relay output signals. This option includes the installation of (16) limiting resistors, (16) diodes and (16) opto isolators. Opto Isolators are recommended if the relays are located more than 3 feet from the AR-16, when more than two relay cards are connected or if the AR-16 is connected to equipment other than the relay cards described on the enclosed data sheet (to prevent possible damage or malfunction of the AR-16 or connected equipment). This option is strongly recommended for all industrial applications. Please note that the /C option is priced per (16) relays (the EX-32 will require two).

/T OPTION: A TransZorb with self resetting Polyfuse is installed.

/Z Option: This option is for use with customized hardware. A 6 digit code will follow the Z suffix to identify the customer and type of modification.

PLEASE NOTE: The AR-16 requires a power supply, connecter cable and relay card(s) to function. Select the power supply and relay card(s) for your application and the proper cable for connection to your computer. The EX-16 expansion card requires the RC-20 ribbon connecter (sold separately) for connection to the AR-16.

To order the standard AR-16 relay interface, specify part number AR-16. The standard AR-16 will be supplied with an RS-232 serial interface.

To order any of the above options, add the proper suffix to the AR-16 part number. Any number of options may be included by adding the proper suffix to the AR-16 part number.

EXAMPLE: use AR-16/C ... to order the AR-16 with opto isolators installed.
use AR-16/A/C ... to order RS-422 and opto isolators.

OP-16-K OPTO ISOLATOR KIT...The OP-16-K kit is for upgrading the AR-16 or EX-16 to provide optically isolated relay outputs. The opto isolators are recommended when the relay cards are located more than 3 feet from the AR-16 or EX-16 cards or when the relay ports are connected directly to other equipment. An isolated power supply must be used to power the relay cards or other devices which are connected to the relay output ports. Each kit provides (16) opto isolators (common collector), (16) 6 pin sockets, (16) resistors and (16) diodes. The AR-16 or EX-16 may be ordered with the opto isolator kit installed by adding the suffix /C (see options) or the AR-16/EX-16 may be shipped back to us for installation of the kit at no charge. Opto Isolators with buffered outputs and/or common emitter outputs are also available. Contact technical support for more information.



RELAY CARDS

Please Note: We stock a number of specialized relay cards which are not listed here. Please contact technical support for more information at (800) 842-7714.

RD-8 REED RELAY CARD...The RD-8 reed relay card is designed for general purpose use. The reed relays have high life expectancy contacts which operate for millions of cycles in low current applications. Contacts are single pole, single throw with screw terminals. Connects directly to the AR-16 or EX-16 cards with ribbon cable provided. The RD-8 ribbon cable is available in custom lengths, contact technical support for more information. The RD-8 is also available with optional LED indicator lamps for each relay and/or a TransZorb/self-resetting fuse (specify the /L or /T options when ordering). Requires 12 VDC power supply, 200 ma.
RD-8 SPECIFICATIONS:
8 Reed Relays (with drivers, TTL level input)
Contacts: SPST
Contact Rating: 10 VA  (resistive with ½ amp maximum)
Maximum Voltage: 200 volts DC or AC (resistive load)
Dimensions: 2.5" by 4.75"
Ribbon Cable Length: 15 inches

RD-8 Photo
RD-8M REED RELAY CARD...The RD-8 reed relay card is designed for general purpose use. The reed relays have high life expectancy contacts which operate for millions of cycles in low current applications. Contacts are single pole, single throw with screw terminals. Connects directly to the AR-8MF or AR-12MF cards. The RD-8M is available with optional LED indicator lamps for each relay (specify the /L  when ordering). Powered from USB 5VDC power supply, 200 ma.
RD-8M SPECIFICATIONS:
8 Reed Relays (5VDC coils)
Contacts: SPST
Contact Rating: 10 VA  (resistive with ½ amp maximum)
Maximum Voltage: 200 volts DC or AC (resistive load)
Dimensions: 2.75" by 3.125"

RD-8M Photo
RD-12M REED RELAY CARD...The RD-12M reed relay card is designed for general purpose use. The reed relays have high life expectancy contacts which operate for millions of cycles in low current applications. Contacts are single pole, single throw with screw terminals. Connects directly to the AR-16 or EX-16 cards with ribbon cable provided. The RD-12M is available with optional LED indicator lamps for each relay (specify the /L when ordering). Powered from USB 5VDC power supply, 300 ma
RD-12M SPECIFICATIONS:
12 Reed Relays (5VDC coils)
Contacts: SPST
Contact Rating: 10 VA  (resistive with ½ amp maximum)
Maximum Voltage: 200 volts DC or AC (resistive load)
Dimensions: 2.75" by 4.25"

RD-12M Photo
RG-8 REED RELAY CARD...Same as RD-8 above except the contacts are double pole, single throw (DPST). Ribbon cable length is 18 inches. Optional plug-in type relays are available. Dimensions are 2.5" by 8". Requires 12 VDC power supply, 200 ma.
RG-8 Photo
RH-8 RELAY CARD...The RH-8 relay card is designed for general purpose use where higher current and power capacities are required. Contacts are single pole, double throw with screw terminals. Connects directly to the AR-16 or EX-16/EX-32 cards with ribbon cable provided. The RH-8 ribbon cable is available in custom lengths, contact technical support for more information. The RH-8 is available with optional LED indicator lamps for the relays and/or a TransZorb/self-resetting fuse (specify the /L or /T option when ordering). Optional plug-in type relays are also available. Requires 12 VDC power supply, 500 milliamp.
RH-8 SPECIFICATIONS:
8 Relays (with drivers, TTL level input)
Contacts: SPDT
Contact Rating: 12 amp 1/3 HP (tungsten 360 W)
Maximum Voltage: 240 VAC or 30 VDC
Dimensions: 2.75" by 6"
Ribbon Cable Length: 15 inches

RH-8 Photo
RN-8 RELAY CARD...Same as RH-8 above except the contacts are rated at 16 amp. Optional plug-in type relays are also available. Ribbon cable length is 15 inches. Dimensions are 2.75" by 6". Requires 12 VDC power supply, 500 ma.
RN-8 SPECIFICATIONS:
8 Relays (with drivers, TTL level input)
Contacts: SPDT
Contact Rating: 16 amp (1/2 HP 120VAC, 1 HP 240VAC) (tungsten TV-5 120VAC 25K)
Maximum Voltage: 250 VAC or 30 VDC
Dimensions: 2.75" by 6"
Ribbon Cable Length: 15 inches

RN-8 Photo
RN-8M RELAY CARD...Same as RN-8 above except relay coils are 5VDC and the card is direct connect with no ribbon cable. For use with the AR-8MF. Optional plug-in type relays are also available. Dimensions are 2.75" by 6". May be powered from USB 5VDC power supply or external 5VDC supply (use PS-5VDC-1000), draws 700 ma. with all relays energized.
RN-8M Photo
RJ-8 RELAY CARD...Relays are DPDT with a 13.5 amp terminal block rating at 250 volts AC. The RJ-8 features LED indicator lamps to provide relay status. Relay Sockets and/or heavy duty 15 amp detachable terminal blocks that may be removed from the RJ-8 without removing wires from the terminals are available as an option. Ribbon cable length is 20 inches. Requires 12 VDC power supply, 700 milliamp.
RJ-8 SPECIFICATIONS:
8 Relays (with drivers, TTL level input)
Contacts: DPDT (2Z) Material: silver alloy
Max switching current: 15A 120 VAC
Max switching voltage: 28V DC / 250V AC
Max switching power: 420W / 3.75kVA
Rated load (resistive): 12A / 28V DC /250VAC
Horsepower Rating: 1 HP at 250 VAC 1/2 HP at 120 VAC
Dimensions: 3.125" by 10.75"
Ribbon Cable Length: 20 inches

RJ-8 Photo
RI-8 RELAY CARD...The RI-8 is designed for energy management applications, but may be used for a variety of other applications. Contacts are four pole double throw with screw terminals. Two of the four contact sets on each relay are shunted together to provide increased reliability. These contacts are generally used to control heating and air conditioning equipment by wiring directly into thermostat control wiring (the contacts may be separated and used individually if desired by adding an optional terminal block). The other two sets of contacts on each relay are available for use in powering remote indicator lamps, power relays, etc. A jumper block is provided to allow the desired contact configuration to be selected or an additional terminal block may be ordered which will allow additional screw terminals for each contact. Optional plug-in type relays are available. Connects directly to the AR-16 or EX-16 cards with ribbon cable provided. Requires 12 VDC power supply, 700 milliamp.
RI-8 SPECIFICATIONS:
8 Relays (with drivers, TTL level input)
Contacts: 4PDT
Contact Rating: 5 amp
Maximum Voltage: 125 volts AC
Dimensions: 3.75" by 10"
Ribbon Cable Length: 20 inches

RI-8 Photo
RL-8 RELAY CARD...The RL-8 relay card is designed for general purpose power switching applications and provides (8) 15 amp double pole relays. The contact sets are shunted together to provide increased reliability. The common contacts on each relay are connected to a common high current bus circuit for connection to 120 or 240 VAC power at up to (4) 15 amp circuits. An (8) position 16 amp terminal block is provided for connection to the load side of the relays. Other features include outputs for relay LED indicator lamps and TransZorb/MOV surge protection. A dual output 2 amp 12 volt power supply (1 amp per side) is also provided on the relay card. Relays are powered from one side of the dual power supply. Power input is 120 VAC.
RL-8 SPECIFICATIONS:
8 Relays (with drivers, TTL level input)
Contacts: DPDT
Contact Rating: 15 amp 120 VAC, 10 amp 250 VAC, 15 amp 30 VDC
Horsepower Rating: ½ HP at 250 VAC, 1/3 HP at 120 VAC
Maximum Voltage: 250 volts AC
Dimensions: 5.75" by 9.375".
Ribbon Cable Length: 20 inches

RL-8 Photo
RP-8 RELAY CARD...The RP-8 relay card is designed for general purpose power switching applications and provides (8) 15 amp double pole relays. The contact sets are shunted together to provide increased reliability. The common contacts on each relay are connected to a common high current bus circuit for connection to 120 or 240 VAC power at up to (4) 15 amp circuits. A (16) position 16 amp terminal block is provided for connection to the load side of the relays. Available with optional LED indicator lamps for the relays. Requires 12 VDC power supply, 700 milliamp.
RP-8 SPECIFICATIONS:
8 Relays (with drivers, TTL level input)
Contacts: DPDT
Contact Rating: 15 amp 120 VAC, 10 amp 250 VAC, 15 amp 30 VDC
Horsepower Rating: ½ HP at 250 VAC, 1/3 HP at 120 VAC
Maximum Voltage: 250 volts AC
Dimensions: 5.75" by 9.375".
Ribbon Cable Length: 20 inches

RP-8 Photo
RLY-DPDT-15A RELAY...The RLY-DPDT-15A is used for general purpose applications. Screw terminals and relay socket (rated at 10 amp continuous) are included. Requires RYD-8 relay driver card for use with the AR-16 or EX-16. Relay coil is 12 volts DC, 200 milliamp.
RLY-DPDT-15A SPECIFICATIONS:
Contacts: DPDT
Contact Rating: 15 amp at 120 volts AC or 10 amp at 277 volts AC
DC Contact Rating: 15 amp 30 volts DC res
HP Contact Rating: ½ horsepower at 250 volts AC, 1/3 horsepower 120 volts AC
Maximum Voltage: 277 volts AC

RLY-DPDT-15A Photo
RLY-SPDT-30A POWER RELAY...The RLY-SPDT-30A is used for high power applications. Use to control baseboard heat, air conditioners, major appliances and other equipment which require 30 amps or less. Screw terminals. Requires RYD-8 relay driver card. Relay coil is 12 volts DC, 200 milliamp.
RLY-SPDT-30A SPECIFICATIONS:
Contacts: SPDT
Contact Rating: 30 amp at 277 volts AC or 10 amp at 600 volts AC
Maximum Voltage: 600 volts AC

RLY-SPDT-30A Photo
RLY-DPDT-30A POWER RELAY...The RLY-DPDT-30A power relay is used for high power applications. Screw terminals. Requires RYD-8 relay driver card. Relay coil is 12 volts DC, 200 milliamp.
RLY-DPDT-30A SPECIFICATIONS:
Contacts: DPDT
Contact Rating: 30 amp at 240V (1.5 HP at 120V or 2 HP at 240V)
Maximum Voltage: 600 volts AC 10 amp or 20 amp at 277V

RLY-DPDT-30A Photo
RLY-SPST-4A Miniature Solid State Relay...The RLY-SPST-4A is used for low power applications and consist of a photo MOSFET optically coupled to an LED.
RLY-SPST-4A SPECIFICATIONS:
Contacts: SPST
Contact Rating: 4 amp (rated 2 amp above 12 volts)
Maximum Voltage: 24 volts DC

RLY-SPST-4A Photo
RYD-8 RELAY DRIVER CARD...The RYD-8 relay driver card provides (8) relay driver circuits (TTL level input) for connection directly to relay coils which require currents of 3 amp or less per relay. The output of the RYD-8 is common emitter (a common positive feed to your relays or device). The RYD-8 will power relays with coil voltages from 5 volts to 48 volts DC. A terminal block is provided for connection to relays and relay power input. Other devices may be directly powered from the RYD-8 (motors, lamps, solenoids, etc.). The device must operate on a DC voltage between 5 and 48 volts and require 3 amps or less. The RYD-8 is available with optional LED indicator lamps for the outputs and/or a TransZorb/self-resetting fuse (specify the /L or /T option when ordering). Requires power supply with voltage output equal to relay coil voltage. Dimensions...2.25" by 4.875".
RYD-8 Photo
AR-4 RELAY SELECTOR...The AR-4 relay selector allows one of four possible on-board relays to be energized (similar in function to a four position DPST selector switch). Only one relay will energize at a time and one of the four relays will always be energized when power is supplied to the AR-4. Typical uses include telephone line selection, audio channel selection etc. Relays are DPST reed relays with a 10VA 200 volt rating. Available for connection to USB, WiFi, RS-232, RS-485 or Ethernet. Dimensions...3.25" by 4.25". Please contact EECI support for additional details

PAC-A RELAY INTERFACE PACKAGE...The AR-16 relay interface package is an assembled package which includes the EN-A plastic instrument case (10" by 7.5"), the AR-16 relay interface, (1) RH-8 relay card, power supply, connecter cable and software. The serial cable supplied will be the CC-DE9S unless specified otherwise.
PAC-A Photo
PAC-D LOAD CONTROLLER PACKAGE... This relay interface package is a pre-assembled industrial duty controller which includes the AR-16 Relay Interface, the RL-8 relay card with 15 amp double throw relay contacts which are shunted together to provide increased reliability, LED indicator lamps for each control relay, dual power supply, serial cable, TransZorb/MOV surge protection, heavy duty metal enclosure and heavy duty 12 gauge 120 volt AC power cord. Eight 120 VAC electrical outlets are side mounted in the enclosure for connection of up to eight loads. A DE-9 socket (female) is provided for connection to the RS-232 serial cable. A power switch is provided which will allow a manual bypass of the control relays (with power to the AR-16 removed, all electrical outlets will be energized). Use to control power to office equipment, lighting, computers and a variety of other types of equipment and machinery. The serial cable supplied will the CC-DE9S for connection to the computer unless specified otherwise. Size 12" by 12".
PAC-D Photo




Last revision 6-30-2024....URL: https://www.eeci.com
For information, please contact our web master at.... webmanager@eeci.com
EECI is a registered trademark of Electronic Energy Control, Inc.

Copyright ©1996 - 2024 Electronic Energy Control, Inc.
EECI® Control System Technology
All Rights Reserved
Document End
