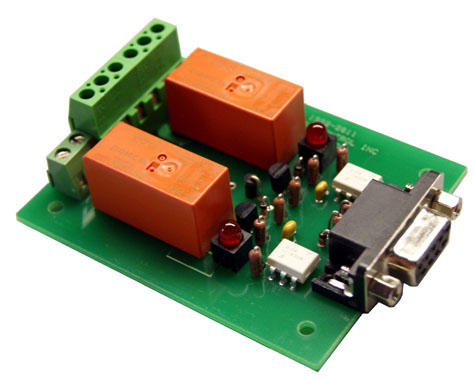

AR-2 Relay Interface
USB Relay - RS232 Relay

USB Relay

AR-2 Relay Interface.............$ 44.95 Quantity

ACCESSORIES
Click the add button to add accessories, then click BUY

PS-GP-1 Wall Adapter............$ 9.95 Quantity

CC-DE9SP Cable 9 pin RS-232...$ 8.95 Quantity

CO-USB Cable with Driver CD..$ 18.95 Quantity

Flash Drive

AR-2 Android Relay Control App

EN-C Enclosure for the AR-2

View Additional Accessories



  • Two relays with SPDT contacts rated at 16 amp 250 volt AC
  • Commercial Grade reliability, over 15 years of proven performance
  • LED indicator lamps for each relay
  • Optically isolated RS-232 connection
  • Full technical support provided by on staff advisors
  • D-Sub connector (9 pin) for connection to RS-232 (or USB with CO-USB cable)
  • Terminal Block with rising cage clamp design (up to 12 AWG wire size)
  • Available in USB only version... AR-2MF Relay Interface, powered from USB
  • Relays may be time scheduled using the SW-A Load Programmer software for 7 day time control of relays
  • Relays may be used to ring a School Bell or Shift Change Bell using the AR-2 Bell Control software
  • Relays may be used to lock and unlock or open and close gates on a time schedule using the AR-2 Lock Controller software
  • Relays may be used to duty cycle equipment using the AR-2 Duty Cycle Controller software
  • LabVIEW compatible, includes LabVIEW VI and graphic software example
  • Compatible with all versions of Windows and DOS including Windows 11, Windows 10, Windows 8.1, Windows 7, Windows XP, Windows Vista, Windows 2000 and Windows ME (and most other operating systems including Linux)
  • Includes CD with free Desktop Relay Control software, Network Remote Relay Control software, Android Apps*, Technical Reference, Software Examples and more - requires power adapter (PS-GP-1) and cable (CC-DE9SP or CO-USB) which are sold separate
  • Open Source - Source code examples included in Microsoft Visual Basic 6, Microsoft Visual Basic.Net and C#, Microsoft Visual Studio, Microsoft ASP.Net, C++, Python and others - DLL's available
  • Android Compatible - Use with your Android tablet or phone - connects directly to USB port or controllable over network (LAN, Wi-Fi, Internet or Mobile network)
Click the Android for free Android USB and Network Apps! Android
*Smartphone applications can vary, please contact EECI support to check compatibility for your device
