Ethernet Digital to Analog (8 channel)
DAC8-8ENET Digital to Analog Converter (8 bit)
DAC8-10ENET Digital to Analog Converter (10 bit)
DAC8-12ENET Digital to Analog Converter (12 bit)
DAC8-16ENET Digital to Analog Converter (16 bit)

Ethernet Digital to Analog (8, 10 and 12 bit)

USB WiFi Ethernet RS-232 RS-485

Click the add button to add items, then click BUY

DAC8-8ENET D to A (8 Bit)....$ 119.95 Quantity

DAC8-10ENET D to A (10 Bit).$ 129.95 Quantity

DAC8-12ENET D to A (12 Bit).$ 139.95 Quantity

DAC8-16ENET D to A (16 Bit).$ 154.95 Quantity

PS-5VDC-1000 Power Adapter

Ethernet Patch Cable

Add Relay Control for $29

EN-D Enclosure for the DAC8-ENET

4 Channel Version

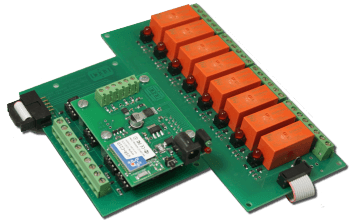

WiFi Digital to Analog with Relay Control DAC4-12WIFI shown with the
EX-8M and RN-8 Relay Card

Typical applications include variable air damper control, blower and motor speed control, light level control, audio sound level control, motion control, water/fluid/air valve position control, variable-frequency drive (VFD) motor control, 4-20ma loop control, solenoid position control and hundreds of other applications.

Have Technical Questions?
Click Here
  • Connects directly to Ethernet, allowing direct Ethernet control of Digital to Analog output levels (and direct Ethernet control of relays with optional expansion module)
  • Connects to any available RJ-45 on your network
  • Heartbeat signal technology provides alarm if unit is tampered with or is damaged
  • 8 channels of 8 bit Digital to Analog (256 increments in output level) with DAC8-8ENET
  • 8 channels of 10 bit Digital to Analog (1,024 increments in output level) with DAC8-10ENET
  • 8 channels of 12 bit Digital to Analog (4,096 increments in output level) with DAC8-12ENET
  • 8 channels of 16 bit Digital to Analog (65,536 increments in output level) with DAC8-16ENET
  • The DAC8-ENET may be special ordered with up to 64 channels of analog output - contact EECI support for more info
  • Selectable reference voltage - allows for 0 to 3.3v, 0 to 5v or user supplied voltage input ranges
  • Available with high precision voltage reference pre-installed. Allows for (0 to 1.2v), (0 to 2.048v - .5mV per increment), (0 to 2.5v), (0 to 3v) or (0 to 4.096v - 1mV per increment) output ranges
    Contact EECI support for more info
  • Add the CO-420T 4-20mA Transmitter for Ethernet controlled 4-20mA current loop transmitter
  • Full technical support provided by on staff advisors
  • Expandable to monitor up to 8 digital inputs or control up to 8 relays (or combinations) using the
    EX-8M expansion card or...
  • Expandable to control up to 128 relays, monitor 128 inputs (or combinations of relays and inputs) using
    EXM-16 or EXM-32 Relay I/O Expansion Modules
  • Expandable to also monitor Analog to Digital channels or control additional Digital to Analog levels - contact EECI support for more info
  • Compatible with Windows XP, Vista, Windows 7, Windows 8.1, Windows 10 and Windows 11
  • Android Compatible - Use with your Android tablet or phone - use over LAN, Wi-Fi, Internet or Mobile network
  • No complicated communication protocol - just one line of code is required to control all analog levels (or control all relays) to greatly simplify software development. The Ethernet connection and all initialization is completely automated.
  • Use your own program to control, read and process the 8 analog output levels for any application or use the included software
  • Source code examples included on CD in Microsoft Visual Basic.Net, Visual C#, C++, Python, Microsoft ASP.Net and others
  • LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library
  • Includes Data Logging Software, device driver and user interface on CD (or optional USB Flash Drive). Requires PS-5VDC-1000 power adapter and Ethernet RJ-45 patch cable (CC-RJ6)
