USB Digital to Analog (8 channel)

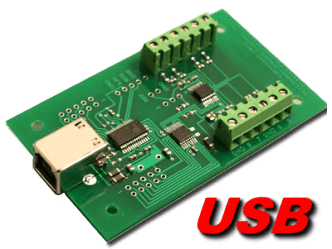

DAC-8U8 USB Digital to Analog Converter (8 bit)
DAC-8U10 USB Digital to Analog Converter (10 bit)
DAC-8U12 USB Digital to Analog Converter (12 bit)
DAC-8U16 USB Digital to Analog Converter (16 bit)

USB Digital to Analog (8, 10 and 12 bit)

USB WiFi Ethernet RS-232 RS-485

Click the add button to add items, then click BUY

DAC-8U8 Digital to Analog.....$ 79.95 Quantity

DAC-8U10 Digital to Analog...$ 89.95 Quantity

DAC-8U12 Digital to Analog...$ 99.95 Quantity

DAC-8U16 Digital to Analog...$114.95 Quantity



Flash Drive

All DAC Versions

USB Cables

Add Relay Control for $29

EN-D Enclosure for the DAC-8U

Additional Accessories


WiFi Digital to Analog with Relay Control DAC4-12WIFI shown with the
EX-8M and RN-8 Relay Card





Typical applications include variable air damper control, blower and motor speed control, telescope position control, antenna position control, RF radio and instrument control (such as to control gain, voltage, current, etc.), light level control, audio sound level control, motion control, water/fluid/air valve position control, variable-frequency drive (VFD) motor control, 4-20ma loop control, solenoid position control and hundreds of other applications.

Have Technical Questions?
Click Here
  • Connects to USB - Powered from USB port
  • 8 channels of 8 bit Digital to Analog (256 increments in output level) with DAC-8U8
  • 8 channels of 10 bit Digital to Analog (1,024 increments in output level) with DAC-8U10
  • 8 channels of 12 bit Digital to Analog (4,096 increments in output level) with DAC-8U12
  • 8 channels of 16 bit Digital to Analog (65,536 increments in output level) with DAC-8U16
  • The DAC-8U may be special ordered with up to 64 channels of analog output - contact EECI support for more info
  • Selectable reference voltage - allows for (0 to 3.3v), (0 to 5v) or user supplied voltage output ranges
  • Available with high precision voltage reference pre-installed. Allows for (0 to 1.2v), (0 to 2.048v - .5mV per increment), (0 to 2.5v), (0 to 3v) or (0 to 4.096v - 1mV per increment) output ranges
    Contact EECI support for more info
  • Add the CO-420T 4-20mA Transmitter for USB controlled 4-20mA current loop transmitter
  • Full technical support provided by on staff advisors
  • Commercial Grade Reliability - engineered for continuous 24 hour industrial operation utilizing Texas Instrument's world renown advanced analog technology combined with advanced USB connectivity by Prolific Technology Inc, a world leader in USB interfacing
  • Expandable to monitor up to 16 digital inputs or control up to 16 relays using EX-8M Expansion Modules or...
  • Expandable to control up to 136 relays, monitor 136 inputs (or combinations of relays and inputs) using EXM-16 or EXM-32 Relay I/O Expansion Modules
  • Expandable to also monitor Analog to Digital channels - contact EECI support for more info
  • Compatible with Windows 11, Windows 10, Windows Server, Windows 8.1, Windows 7, Windows Vista and Windows XP
  • No complicated communication protocol - just one line of code is required to control all analog levels (or control all relays) to greatly simplify software development. The USB connection and all initialization is completely automated.
  • Use your own program to control the 8 analog outputs levels for any application (or use the included software)
  • Source code examples included on CD in Microsoft Visual Basic.Net, Visual C#, C++, Python, Microsoft ASP.Net and others
  • LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library
  • Includes Data Logging Software, driver and user interface on CD (or optional USB flash drive). Requires USB type B cable (CC-USBB1 or CC-USBB6).

DAC-8U8/10/12/16 Description and Spec

DAC-8U8/10/12/16 Tech Reference
