RS-232 Digital to Analog (1 and 2 channel)
DAC1-16RS232 Digital to Analog Converter (16 bit, 1 channel)

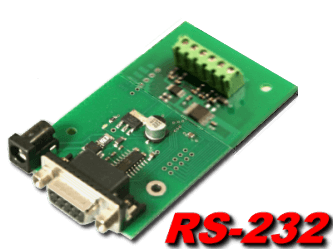

DAC2-16RS232 Digital to Analog Converter (16 bit, 2 channel)

Click the add button to add items, then click BUY

DAC1-16RS232 D to A (16 Bit).$ 79.95 Quantity

DAC2-16RS232 D to A (16 Bit).$ 99.95 Quantity

ACCESSORIES
CC-DE9SP 9 Pin RS-232 Cable...$ 8.95 Quantity

PS-5VDC-1000 Wall Adapter.....$ 12.95 Quantity



EN-D Enclosure for the DAC2-RS232

Additional Accessories

Typical usage include control and deployment with equipment, devices and infrastructure in the following applications:   Water/fluid/air valve position control, variable-frequency drive (VFD) motor control, 4-20ma loop control, environmental controls (such as to control temperature, air flow, air damper position, water flow in zone valve systems, etc.), RF radio and instrument control (such as to control gain, voltage, current, etc.), telescope directional position control, antenna directional position control, to control satellite dish azimuth and elevation, light level control (such as to control laser, IR, ambient, etc.), audio sound level control, motion control, speed control, thrust level, thrust vector control, power output, solenoid position control, use in test fixtures (such as to control voltage, current, resistance, etc.), use in solar array applications (such as to control panel azimuth and elevation, power and charging functions, etc.) and hundreds of other applications.

• Connects to RS-232 (distance up to 50 feet)
• 1 channel of 16 bit Digital to Analog (65,536 increments in output level) with DAC1-16RS232
• 2 channels of 16 bit Digital to Analog (65,536 increments in output level) with DAC2-16RS232
• Selectable reference voltage - allows for 0 to 3.3v, 0 to 5v or user supplied voltage output ranges
• Available with high precision voltage reference pre-installed. Allows for (0 to 1.2v), (0 to 2.048v), (0 to 2.5v), (0 to 3v) or (0 to 4.096v) output ranges - Contact EECI support for more info
• Add the CO-420T 4-20mA Transmitter for RS-232 controlled 4-20mA current loop transmitter
• Full technical support provided by on staff advisors
• Expandable to monitor up to 8 digital inputs or control up to 8 relays using the EX-8M expansion cards or...
• Expandable to control up to 128 relays, monitor 128 inputs (or combinations of relays and inputs) using EXM-16 or EXM-32 Relay I/O Expansion Modules
• Expandable to also monitor Analog to Digital channels or control additional Digital to Analog levels - contact EECI support for more info
• Compatible with Windows 11, Windows 10, Windows Server, Windows 8.1, Windows 7, Windows Vista and Windows XP
• No complicated communication protocol - just one line of code is required to control all analog levels (or control all relays) to greatly simplify software development. The RS-232 connection and all initialization is completely automated.
• Use your own program to control the analog output levels for any application or use the included software
• Source code examples included on CD in Microsoft Visual Basic.Net, Visual C#, C++, Python, Microsoft ASP.Net and others
• LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library
• Includes Data Logging Software, driver and user interface on CD (or optional USB Flash Drive). Requires RS-232 cable (CC-DE9SP) and PS-5VDC-1000 wall adapter.
