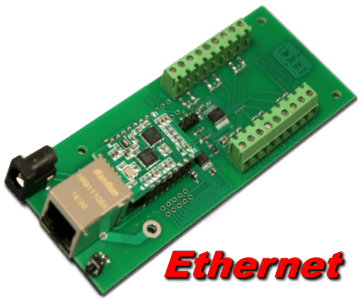

Ethernet Analog to Digital (12 channel)
ADC12-8ENET Analog to Digital Converter (8 bit)
ADC12-10ENET Analog to Digital Converter (10 bit)
ADC12-12ENET Analog to Digital Converter (12 bit)

Click the add button to add items, then click BUY

ADC12-8ENET A to D (8 Bit)...$ 109.95 Quantity

ADC12-10ENET A to D (10 Bit)$ 119.95 Quantity

ADC12-12ENET A to D (12 Bit)$ 129.95 Quantity

ACCESSORIES
PS-5VDC-1000 Wall Adapter....$ 12.95 Quantity



4 Channel Version8 Channel Version

Ethernet Cables

EN-D Enclosure for the ADC12-ENET

Additional Accessories

Typical usage include measurement and monitoring in the following applications: Temperature, pressure, voltage, current/amperage, power usage, power demand, weight (such as strain gauge/load cell output), solar array applications (such as array voltage/current, battery cell voltage, panel angle, power output etc.), antenna directional position, satellite dish azimuth and elevation, light levels (laser, IR, ambient, etc.), water depth, thrust vector, damper position, magnetic fields, fluid flow, speed (such as vehicle, conveyor belt, air flow, wind, etc.), potentiometer movement, vacuum, tension, compression, torque, transducer output, directional sensing (such as gyroscope output) and thousands of other applications.

Have Technical Questions?
Click Here

• ADC12-ENET series connects directly to Ethernet, allowing direct Ethernet monitoring of analog to digital inputs (and direct Ethernet control of relays with optional expansion module)
• Connects to any available RJ-45 on your network
• Heartbeat signal technology provides alarm if unit is tampered with or is damaged
• 12 channels of 8 bit Analog to Digital (256 increments) for single-ended inputs
  or 6 channels of 8 bit fully differential inputs (256 increments) with ADC12-8ENET
• 12 channels of 10 bit Analog to Digital (1,024 increments) for single-ended inputs
  or 6 channels of 10 bit fully differential inputs (1,024 increments) with ADC12-10ENET
• 12 channels of 12 bit Analog to Digital (4,096 increments) for single-ended inputs
  or 6 channels of 12 bit fully differential inputs (4,096 increments) with ADC12-12ENET
• Selectable reference voltage - allows for (0 to 3.3v), (0 to 4.096v), (0 to 5v) or user supplied voltage input ranges
• Full technical support provided by on staff advisors
• Commercial Grade reliability - engineered for continuous 24 hour industrial operation
• Expandable to monitor up to 8 digital inputs or control up to 8 relays (or combinations) using the
  EX-8M Expansion Module or...
• Expandable to control up to 136 relays, monitor 136 inputs (or combinations of relays and inputs) using EXM-16 or EXM-32 Relay I/O Expansion Modules
• Expandable to also control Digital to Analog levels or monitor additional Analog to Digital channels - contact EECI support for more info
• Compatible with Windows 11, Windows 10, Windows Server, Windows 8.1, Windows 7, Windows Vista and Windows XP
• No complicated communication protocol - just one line of code is required to read all inputs (or control all relays) to greatly simplify software development. The Ethernet connection and all initialization is completely automated.
• Use your own program to read, display and process the 12 analog inputs for any application or use the included software
• Source code examples included on CD in Microsoft Visual Basic.Net, Visual C#, C++, Python, Microsoft ASP.Net and others
• LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library
• Includes Data Logging Software, driver and user interface on CD (or optional USB Flash Drive). Requires power adapter (PS-5VDC-1000) and Ethernet RJ-45 patch cable (CC-RJ6)
