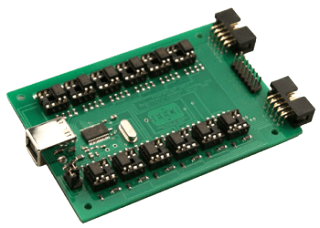

AR-12MF Multi-Function USB Relay Interface

USB Relay

AR-12MF Relay Interface.......$ 69.95 Quantity

ACCESSORIES
Click the add button to add accessories, then click BUY

CC-USBB1 USB Cable 1 foot...$ 5.95 Quantity

CC-USBB6 USB Cable 6 foot...$ 8.95 Quantity

RD-12M Relay Card..............$ 56.95 Quantity

Relay Cards

Accessories

USB Relays
AR-12MF shown with RD-12M

Event Notification for your Smartphone

AR-12MF Multi-Function Relay Interface
  • Connects to USB - Powered from USB port
  • May be set to control 12 relays or monitor 12 inputs or combinations
  • Expandable to control up to 148 relays, monitor 148 inputs (or combinations of relays and inputs) using EXM-8, EXM-16 or EXM-32 Relay I/O Expansion Modules
  • Dual I/O function (optional) allows inputs with control of relays
  • Inputs may be used to monitor contact status or monitor AC or DC voltages 3.3 volts to 18 volts (other voltage ranges available)
  • Optically isolated inputs are bidirectional and may be used with a positive common, a negative common or AC signals
  • Multi-Function capability allows connection of a variety of I/O devices
  • Large variety of relay cards may be connected - RD-8, RD-8M, RD-12M, RG-8, RH-8, RI-8, RJ-8, RN-8, RN-8M, RYD-8, specialty cards and others
  • Miniature Solid State Relays are available that plug directly into the opto isolator socket and provide high current output in place of the opto output
  • Optically isolated inputs and relay outputs that protect your USB port/computer and allow relays, keypads and other devices to be located up to several miles from the AR-12MF and the USB port. The RCT-8 or RCT-16 Terminal Block may be used to connect inputs or provide direct connection to LEDs, low power relays or most solid state relays (100mw max)
  • The AR-12MF utilizes the most recent USB interface technology from Prolific Technology Inc, a world leader in USB interfacing
  • Controllable over local network (or Internet with static IP) - network software included
  • Includes Event Notification software for your Smartphone, Tablet, Laptop or Desktop PC
  • Use the SW-A Load Programmer software for 7 day time control of relays
  • LabVIEW compatible, includes LabVIEW VI, graphic software example and DLL library
  • Compatible with Windows XP, Vista, Windows Server, Windows 7, Windows 8.1 and Windows 10
  • No complicated communication protocol - just one line of code is required to control all relays (or read all inputs) to greatly simplify software development. The USB connection and all initialization is completely automated.
  • Source code examples included in Microsoft Visual Basic, Microsoft Visual C#, C++, Python, Microsoft Visual Studio, Microsoft ASP .Net and others
  • Full technical support provided by on staff advisors
  • Includes CD (or optional USB Flash Drive) with software examples, software interface, driver, technical reference, Android Apps and more
  • Android Compatible - Use with your Android tablet or phone - controllable over network
*Smartphone applications can vary, please contact EECI support to check compatibility for your device Have Technical Questions?
Click Here
Click the Android for free Android USB and Network Apps! Android Analog to Digital



AR-12MF Description and Spec

AR-12MF Technical Reference
